Long Weld Neck Flange
Available Grades
|
Stainless Steel
|
ASTM A479, A182 - 304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L, 17-4PH & 400 Series, SA / A 182F304 / L, F316 / L, 321, F347, F317L |
|---|---|
|
Mild Steel
|
Gr. 1008, 1010, 1015, 1020, CK35, CK45, CK55, CK60 Etc. |
|
Carbon Steel
|
ASTM A105, A350 LF2, SA / A105, A350LF2, SA266 CL-1, 2, 3 & 4, S355J2G3, A694F52, F60, F65 |
|
Duplex & Super Duplex Stainless Steel
|
SA / A182 F51, F60, F53, F55 |
|
High Nickel Based Special Steels
|
Monel K400/500, Inconel 800, 825, 600, 625, Alloy20, Hastelloy C-276 |
|
Alloy Steel
|
ASTM A182 F5, F9, F11, F12, F21, F22, F91, SA / A182, F5, F11, F9, F22, F91 |
|
Non Ferrous
|
Copper |
Long Weld Neck

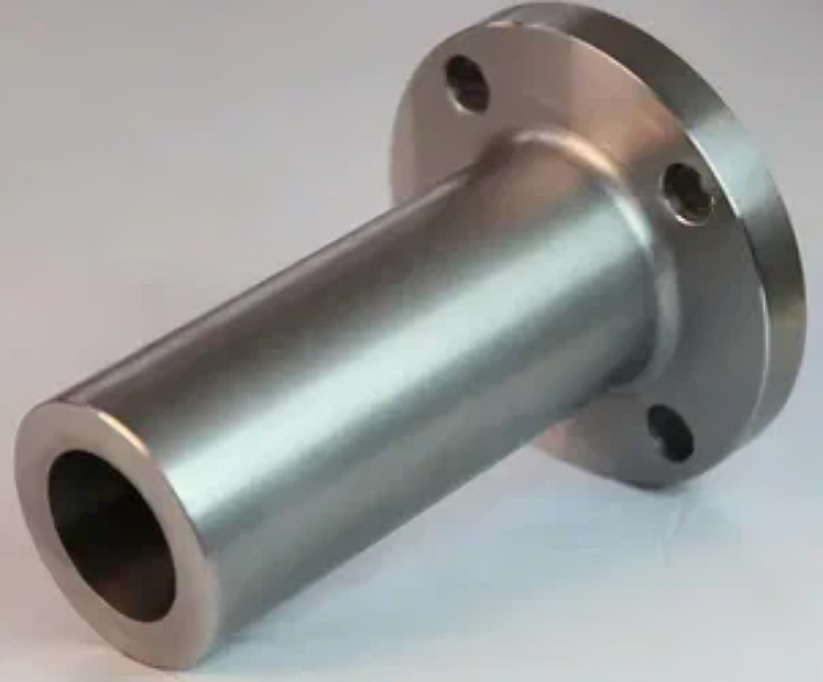

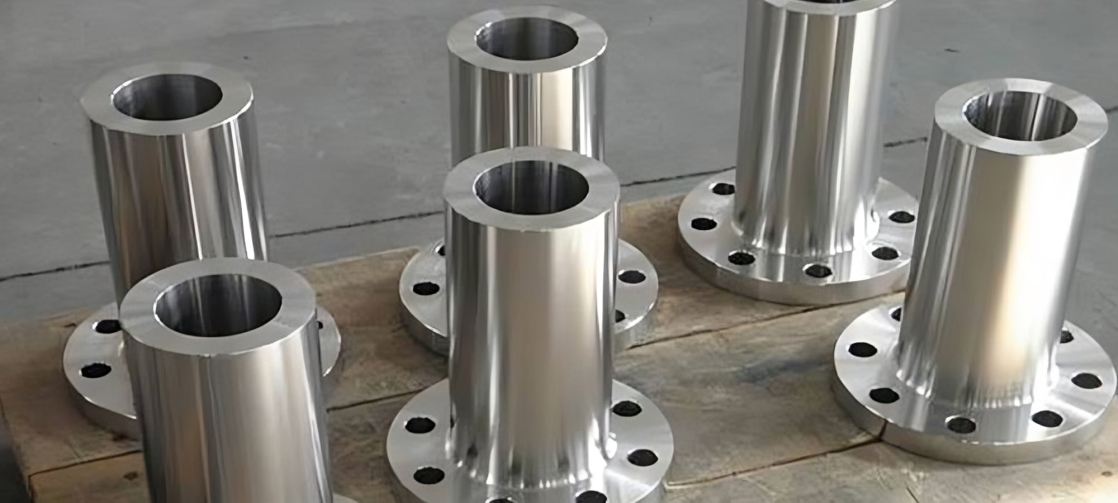

A Long Weld Neck (LWN) flange is a specialized type of flange distinguished by its long, extended neck or hub. This extended neck acts as a boring extension and is primarily used as a nozzle connection on pressure vessels, barrels, or columns. The primary advantage of the LWN flange is that it moves the weld area further away from the main flange ring, reducing stress concentrations at the base and providing a robust connection ideal for high-pressure, high-temperature, or other severe service conditions. Its sturdy construction ensures excellent performance in applications requiring high structural integrity.
Specification Table
| Dimensions: | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size: | 1/2″ (15 NB) to 60″ (1500NB) |
| Class: | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| BS: | BS4504 , BS4504, BS1560, BS10 , PN6 , PN10 , PN16 , PN25 , PN40, etc |
| Table: | D / E / F / H / J / K |
| Api Standards: | PSI-2000/3000/5000/10000/etc |
| JIS Standards: | 2220-2004 5k/10k/16k, etc |
| Flange Face Type: | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
