Non Standard Forgings / Branch Fittings
Available Grades
|
Stainless Steel
|
ASTM A479, A182 - 304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L, 17-4PH & 400 Series, SA / A 182F304 / L, F316 / L, 321, F347, F317L |
|---|---|
|
Mild Steel
|
Gr. 1008, 1010, 1015, 1020, CK35, CK45, CK55, CK60 Etc. |
|
Carbon Steel
|
ASTM A105, A350 LF2, SA / A105, A350LF2, SA266 CL-1, 2, 3 & 4, S355J2G3, A694F52, F60, F65 |
|
Duplex & Super Duplex Stainless Steel
|
SA / A182 F51, F60, F53, F55 |
|
High Nickel Based Special Steels
|
Monel K400/500, Inconel 800, 825, 600, 625, Alloy20, Hastelloy C-276 |
|
Alloy Steel
|
ASTM A182 F5, F9, F11, F12, F21, F22, F91, SA / A182, F5, F11, F9, F22, F91 |
|
Non Ferrous
|
Copper |
Self Reinforced Nozzles
A Self Reinforced Nozzle is a type of heavy-duty forged fitting used to create a branch connection on a pressure vessel or high-pressure piping system. Its key feature is the integral reinforcement built into the nozzle's body, which has a thicker, contoured wall. This design provides all the necessary strength to compensate for the opening cut into the main vessel, eliminating the need for a separate reinforcing pad. This simplifies the welding and inspection process, reduces stress concentration points, and creates a stronger, more reliable connection for demanding applications.
Specification Table
| Design Codes: | ASME Section VIII, ASME B31.3, ASME B31.1, Custom Engineering Drawings |
| Size: | 1/2" to 24" (Larger sizes available on request) |
| Connection End: | Flanged End (as per ANSI B16.5), Butt Weld End (as per vessel thickness) |
| Flange Pressure Class: | 150 LBS to 2500 LBS, API 6A |
| Vessel Curvature: | Custom machined to match the specific curvature of the vessel shell |
| Materials: | Carbon Steel (SA105, SA350 LF2), Stainless Steel (SA182 F304/L, F316/L), Alloy Steel (F11, F22, F91) |
| Facing Type: | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) |

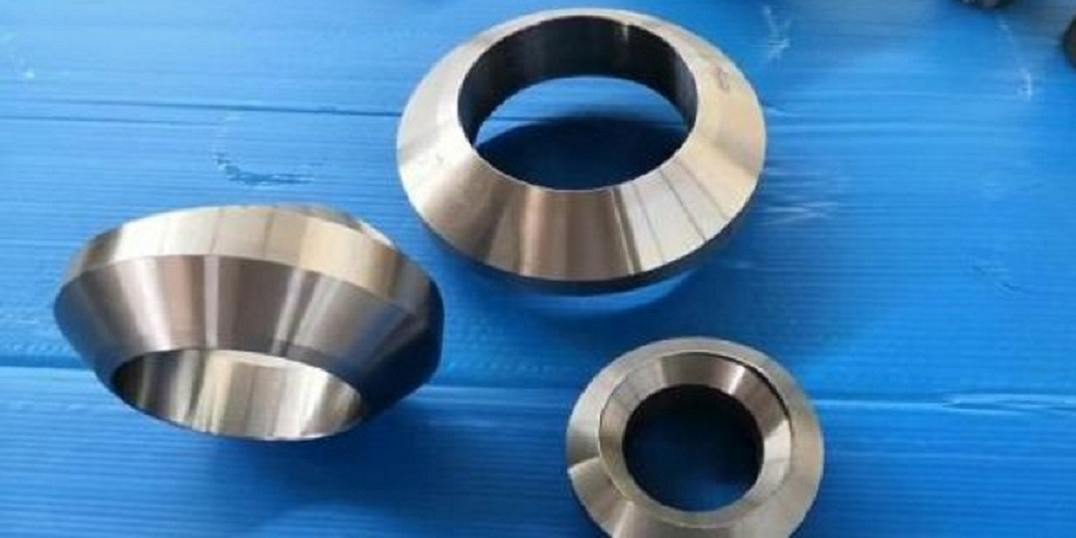

Weldolets / Nippolets / Elbolets / Latrolets
This family of fittings, commonly known as "O'lets" or Branch Outlet
Fittings, provides a strong, reliable method for creating branch connections from a larger
pipe. They offer a smoother flow transition and a stronger weld than a traditional stub-in connection.
• Weldolet®: Creates a 90° butt-welded branch connection.
• Nippolet®: A weldolet base with an extended nipple body, used for valve or
instrument take-offs.
• Elbolet®: Welded onto an elbow to create a branch outlet.
• Latrolet®: Creates a 45° lateral branch connection.
Specification Table
| Standard: | MSS-SP-97 (Integrally Reinforced Forged Branch Outlet Fittings) |
| Size Range: | Branch Size: 1/4" to 24" on Run Pipe Size: up to 36" |
| Butt Weld End Class: | Standard (STD), Extra Strong (XS), Schedule 160, Double Extra Strong (XXS) |
| Socket Weld / Threaded Class: | 3000 LBS, 6000 LBS, 9000 LBS |
| Types: | Weldolet, Sockolet, Threadolet, Elbolet, Latrolet, Nippolet, Sweepolet |
| Materials: | Carbon Steel (ASTM A105), Low-Temp Carbon Steel (ASTM A350 LF2), Stainless Steel (ASTM A182 F304/L, F316/L), Alloy Steel (F11, F22) |
Tube Sheets
A Tube Sheet (or tubesheet) is a critical component in shell & tube heat exchangers, condensers, and boilers. It is a precisely machined plate, typically circular, designed to hold and support the ends of the tubes. Its primary functions are to seal the tubes, preventing the shell-side fluid from mixing with the tube-side fluid, and to provide structural stability to the entire tube bundle. The material selection and high-precision drilling of the tube sheet are vital for ensuring the longevity and leak-proof performance of the heat exchanger.
Specification Table
| Design Standard: | TEMA (Tubular Exchanger Manufacturers Association), ASME Section VIII Div. 1 & 2, Customer Drawings |
| Diameter: | Up to 3000 mm (or as per project requirements) |
| Thickness: | From 10 mm to over 300 mm, depending on pressure and design |
| Drilling Pattern: | Triangular Pitch (30°), Rotated Triangular Pitch (60°), Square Pitch (90°), Rotated Square Pitch (45°) |
| Machining: | High-precision CNC drilling, reaming, groove cutting for tube expansion |
| Materials: | Carbon Steel, Stainless Steels, Duplex & Super Duplex, Copper Alloys, Nickel Alloys (Inconel, Monel), Titanium, Clad Plates |
| Cladding: | Explosion bonding or weld overlay for corrosion resistance |
